Monitoring System Controller MD-111

The monitoring system makes flexible use of TML-NET measurement system. The system consists of controller, network modules and TML-NET compatible transducers. The controller MD-111 controls the network modules and the transducers at specified intervals and stores measurement data in SD card. It is suitable for installation in an instrument storage box or cabinet, and is equipped with input/output contacts. Accordingly, it is most suited for making a measurement system of small scale.

Network Measurement System / Monitoring System Controller MD-111
Features
  • Automatic measurement by sleep interval function
  • Driven by DC power source
  • Small, light and available for installation on DIN rail
  • Number of measurement point can be extended easily
  • Measurement data are stored in SD card
  • Alarm via contact output
  • Specifications

    Type MD-111
    Maximum number of connection Low-comsumption module 100 modules
    Conventional module 20 modules(Connection distance up to 150 m)
    Maximum extension distance Low-comsumption module 1km or less
    Conventional module 1km or less (for 10 modules or less)
    Connecting cable Exclusive 2-core shielded cable 2-1.25L1
    Number of measurement point 100 points
    Function Interval measurement, Monitoring
    Measurement mode Simple measure mode
    Function of TML-NETset-up Channnel number setting of network module
    (Available when connecting only one module)
    Interval timer 1, 2, 5, 10, 15, 20, 30 minutes, 1, 2, 3, 4, 6, 12, 24 hours
    (The starting time of measurement can be specified)
    Memory card SD memory card (TML specified)
    Contact input One point: Non-voltage contact, Open collector signal
    Contact output One point: Relative value, Upper/lower limit value
    Dimensions 95(W) x 30(H) x 100(D)mm
    Weight Approx. 200g
    Power supply DC4.2 to 6.8V
    DC9 to 18V

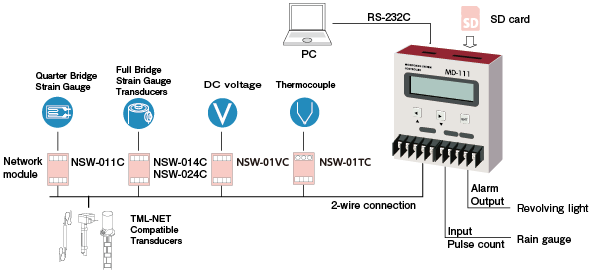

System Block Diagram

img-md111-02_e
