Hub Bolt Axial Force Measurement System

This product enables measurement of axial force fluctuations in real time while driving, by installing strain gauges on the vehicle’s hub bolts (axial-force bolts). It requires no modifications to the vehicle or wheels. The system can also acquire output from strain gauges attached to components such as wheels.

In addition, the main unit incorporates a rotary encoder, allowing measurement of wheel rotational speed and angle. This enables more advanced data acquisition and analysis.

For axial-force bolts, we offer a Bolt Gauge Embedding and Calibration Service. For bolts supplied by the customer, we perform drilling, installation of bolt-mounted strain gauges, and load calibration. We encourage you to make use of this service.

ハブボルト軸力計測



Key Features

  • Measures axial force fluctuations during driving
  • No modifications required to the vehicle or wheels
  • Not constrained by PCD or the number of bolts
  • Measures axial force fluctuation, wheel speed, and rotation angle with a single unit
  • Supports strain gauges affixed to components such as wheels

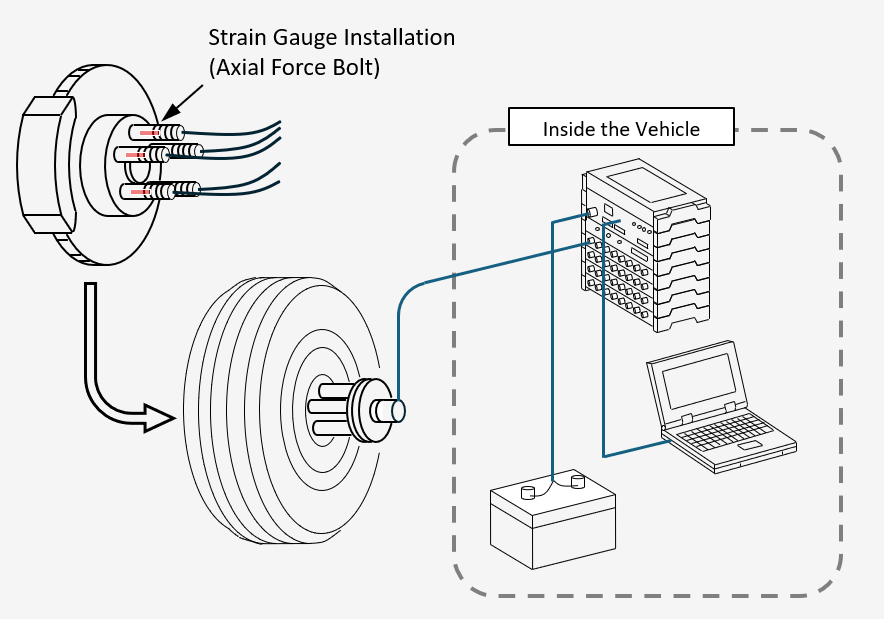

System Diagram (for reference)

System Diagram

Specifications (for reference)

Supported PCDs 100–4 bolts, 100–5 bolts, 114.3–4 bolts, 114.3–5 bolts
Maximum permissible rotational speed 2,500rpm

Note: PCD 120/139.7/150, 6-bolt patterns, heavy-duty vehicles, and special-purpose vehicles are also supported. Please contact us for details.

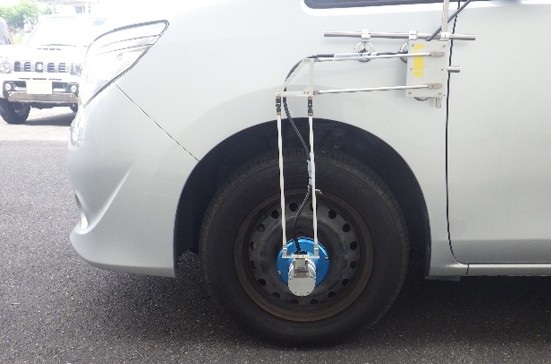

Installation Example
