Data Loggers

T-ZACCS9 High-speed, High-accuracy, High-functionality Data Logger TS-963

This is the top-of-the-line data logger of the T-ZACCS series, combining high speed, high accuracy, and high functionality.
TS-963 is a model with a built-in unit with 30 channels.
It can measure strain gages, strain gage transducers, thermocouples, platinum resistance thermometer, DC voltage, etc.
Combined use of an external measuring box enables measurement of up to 1000 points, making it suitable for measurements of any scale.
The use of our unique next-generation A/D method that combines high accuracy and high stability with high-speed measurement and an ultra high-speed field network based on Ethernet eliminates various types of thermoelectromotive forces, zero shift of amplifiers, and commercial power supply noise.
While realizing highly accurate and highly stable measurement, the high-speed mode realizes 0.1 second measurement and stress-free operability regardless of the number of measurement points, enabling measurement of a wide range of phenomena, from static to quasi-dynamic phenomena.
Various monitors, various automatic measurements, and various calculations can be performed without the use of a PC.
An external analog output unit enables voltage output linked to measurement.
The T-ZACCS9 TS-963 is an all-in-one data logger with everything you need.

T-ZACCS9 TS-963
Features
  • Capable of measuring strain gauges, strain gauge transducers, thermocouples, platinum RTD (resistance temperature detector), DC voltage, etc.
  • High-speed mode allows measurements every 0.1 sec. (High-speed mode allows measurements every 0.1 sec.)
  • Built-in measuring unit capable of monitoring and displaying all 30ch points
  • Our unique next-generation A/D method eliminates noise and realizes highly accurate and stable measurement.
  • Measurement data can be recorded in 4GB internal memory, SD card is used as external recording media Equipped with 9-inch wide LCD touch panel
  • Comfortable operation with wide widescreen and user-friendly screen configuration
  • Remote data logger functionality enables operation from a web browser
  • Specifications

    Type TS-963
    Number of measuring point Using Measurement box 1000 points at maximum(2000 points at maximum when temperature-integrated strain gauges are used)
    Using both Measurement
    box and Built-in
    measurement unit
    Using Built-in measurement unit 30 points (possible up to 60 points when temperature-integrated strain gauges are used)
    Data update rate
    Measuring speed
    Display and record measurements update cycle 0.1 sec.
    High-accuracy mode (0.4 seconds(50Hz)/0.34 seconds(60Hz)
    Measurement mode Initials, Direct, Simple Measure(Temperature measurement is direct only)
    Simple measure Factor 1.00, Unit Linked to sensor mode, Decimal point Linked to sensor mode
    Compensation mode Comet NON/Comet A/Comet B
    Monitor Number of setting table 5
    Number of display frame 0 to 4
    Display mode Value, MAX/MIN, Chart (Y-T), Chart (X-Y), Chart (BAR), Vector
    Measurement Manual measurement Start key (START button on touch screen)
    Automatic measurement Interval measurement, Comparator measurement, Alarm measurement, Sampling measurement, Sequence measurement
    Interface LAN, USB, RS-232C
    Sensor mode Strain Quarter bridge 3-wire 120 / 240 / 350 Ω, Half bridge common dummy
    Half bridge, Full bridge, Full bridge constant current 350Ω
    Full bridge high resolution mode, Full bridge 0-2V mode
    Full bridge constant current 350Ω high resolution mode
    Temperature-integrated strain gauge 120 / 240 / 350 Ω(only when using EI-01P)
    Temperature Thermocouple T, K, J, B, S, R, E, N
    Pt-RTD Pt100 3W
    Voltage 640mV, 64V
    Channel setting Function Operation with function and operation between channels
    Number of channel 100 channels
    Usable variable Channel, Extended channel, Constant
    Operation Four arithmetic operations/General functions/Trigonometric functions/Functions for
    rosette analysis/Functions for multi-layer inclinometer/Logical functions/Other function
    Recording Internal memory(4Gbyte), SD card(specified by TML)
    Interface LAN, USB, RS-232C
    External dimensions 328(W)×174(H)×424(D) mm
    Weight Approx. 10 kg
    Power supply AC100 to 240V 50/60Hz 70VA MAX

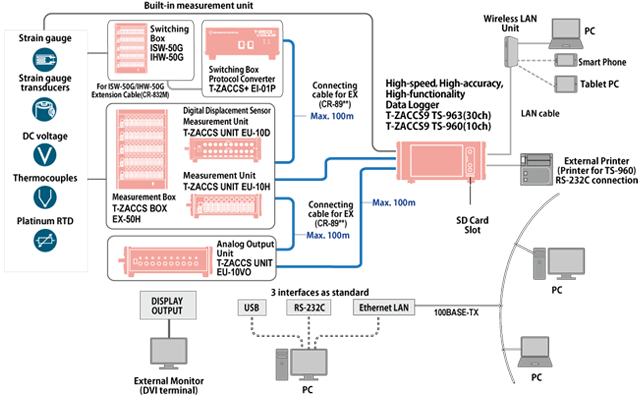

    system

T-ZACCS 9 High-speed ▪ High-accuracy ▪ High-functionality Data Logger TS-960

This is the top-of-the-line data logger in T-ZACCS series that features high-speed, high-accuracy and high-functionality. Measurement of various inputs including strain gauges, strain gauge type transducers, thermocouples, Pt-RTDs and dc voltage are possible. The number of measuring point is 10 for the data logger main body, and it can be extended up to 1000 points using external measurement boxes together. The system is applicable to a measurement of large scale as well as that of small scale. Owing to the introduction of our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability, and also of ultra high-speed field network that is based on Ethernet, highly accurate and stable measurement is realized eliminating the influence of various thermoelectromotive forces, thermal zero shift of amplifier, and power line noise. Regardless of the number of measuring point, measurement is possible at intervals of 0.1 seconds in high-speed mode and 0.4 seconds in high-accuracy mode (in 50Hz area). The rapidness and stress-free operability makes the system well suited to the measurement of various phenomena ranging from static to quasi-dynamic. Monitoring, automatic measurement and data calculation are possible in various ways without using a personal computer. It is also possible to obtain voltage outputs linked with the measured values using the external analog output unit. The T-ZACCS 9 TS-960 is an all-in-one data logger filled with everything required for measurement.

T-ZACCS9 TS-960
Features
  • Measurement of 1000 points at maximum (additionally 1000 channels of temperature-integrated strain gauge and 1000 channels of extended channel)
  • Highly accurate and stable measurement achieved by our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability
  • High-speed measurement of 0.1 seconds at the fastest
  • Data are securely held by the built-in robust 4GB data memory and UPS circuit
  • Stable interval measurement with clock accuracy of daily rate ±1 second
  • Batch setting of coefficient, unit, decimal point and sensor type by “Sensor ID”
  • High-resolution mode (0.1×10-6 strain) provided
  • Complete compensation method of strain (Comet) provided
  • Various check functions; Automatic checking using timer is also possible
  • Stress-free operation with reduced waiting time
  • 9-inch IPS LCD widescreen display with wide viewing angle
  • Display language switchable between English and Japanese
  • Versatile monitoring function to display various values and charts using five setting tables and four frames
  • Display using an external monitor (recommended by TML) through the installed DVI output
  • Easy-to-operate and simple-to-understand screen configuration
  • Stress-free operation with quick responsiveness
  • Automatic measurement (interval measurement, comparator measurement, alarm, sequence measurement, sampling measurement)
  • Extended channel function for operation between channels and operation with function including rosette analysis
  • Functions of MAX (maximum value), MIN (minimum value) and IF (branching) are added
  • LAN, USB and RS-232C interfaces provided
  • Specifications

    Type TS-960
    Number of measuring point Using Measurement box 1000 points at maximum
    (2000 points at maximum when temperature-integrated strain gauges are used)
    Using both Measurement box and Built-in measurement unit
    Using Built-in measurement unit 10 points  (up to 20 points when temperature-integrated strain gauges are used)
    Measuring speed High-speed mode  0.1 seconds
    High-accuracy mode 0.4 seconds(50Hz) / 0.34 seconds(60Hz)
    Measurement mode Initial, Direct, Measure
    (only Direct for temperature measurement)
    Simple measure Coefficient: 1.00, Unit: Depends on sensor mode, Decimal point: Depends on sensor mode
    Compensation mode Comet NON / Comet A / Comet B
    Monitor Number of setting table 5
    Number of display frame 0 ~ 4
    Display mode Value, MAX▪MIN
    Chart (Y-T), Chart (X-Y), Chart (BAR)
    Display channel Value display, MAX▪MIN display, Chart display (Y-T), Chart display (X-Y), Chart display (BAR)
    Measurement Manual measurement Start key (START button on touch screen)
    Automatic measurement Interval measurement, Comparator measurement, Alarm measurement,
    Sampling measurement, Sequence measurement
    Interface LAN, USB, RS-232C
    Sensor mode Strain Quarter bridge 3-wire 120 / 240 / 350 Ω
    Half bridge, Half bridge common dummy, Full bridge, Full bridge high resolution mode, Full bridge constant current 350Ω, Full bridge constant current 350Ω high resolution mode, Full bridge 0-2V mode
    Temperature-integrated strain gauge 120 / 240 / 350 Ω
    Temperature Thermocouple T/ K/ J/ B/ S/ R/ E/ N
    Pt-RTD  Pt100 3W
    Voltage 640mV, 64V
    Extended channel setting Function Operation with function and operation between channels
    Number of channel 100 channels
    Usable variable Channel, Extended channel, Constant
    Operation Four arithmetic operations, General functions, Trigonometric functions, Functions for rosette analysis, Functions for multi-layer inclinometer,
    Logical functions, Other function
    Recording Internal memory (4 Gbyte), SD card (specified by TML)
    Interface LAN, USB, RS-232C
    External dimensions 328 (W) × 148 (H) × 200 (D) mm
    Weight Approx. 5 kg
    Power supply AC 100 ~ 240 V   50/60 Hz  70 VA Max.

    TS960

T-ZACCS5 Data Logger TS-560

Next-generation data logger with sophisticated functions integrated in a compact body

T-ZACCS 5 TS-560 is a data logger that is easily capable of multi-point measurement when combined with high speed switching box IHW-50G and/or switching box ISW-50G. The maximum number of measuring point is 1000, and an arbitrary combination of inputs including strain gauges, strain gauge type transducers, dc voltage, thermocouples and Pt-RTDs are available according to the measurement conditions. Since it has achieved smaller and more lightweight construction than conventional data loggers, it is applicable to various measurement situations. The color LCD touch screen provides comfortable and intuitive operation and clear monitoring display. In addition to real-time monitoring, it is possible to make quick confirmation/verification of measured data after the measurement.

TS-560
Features
  • Data are securely held by the robust built-in data memory
  • Stable interval measurement possible at clock accuracy of daily rate ±1 second
  • Batch setting of coefficient, unit, decimal point and sensor type using “Sensor ID”
  • “Quick interval” function provided for interval measurement without the need for setting
  • “Remote data logger” function provided for control through an internet browser
  • Number of measuring point is 1000 at maximum (using external switching boxes)
  • Equipped with Complete Compensation Method of Strain
  • Various check functions (automatic checking using timer is possible)
  • Touch screen color LCD monitor
  • Automatic measurement function using interval timer and monitor comparator
  • SD card and USB memory are accepted as recording media
  • Equipped with LAN, USB and RS-232C as standard specifications
  • Powered by built-in battery even if external power supply is interrupted
  • Specifications

    Type TS-560
    Number of measuring point 1000 points at maximum
    Measuring speed IHW-50G 1 s/1000 points
    ISW-50G 3 s/1000 points
    Measurement mode Initial, Direct, Measure (Direct only for temperature measurement)
    Simple measure Coefficient 1.000
    Unit Depends on sensor mode
    Decimal point Depends on sensor mode
    Compensation mode Comet NON/Comet A/Comet B
    Sensor mode Strain Quarter bridge 3-wire 120/240/350 Ω
    Half bridge, Half bridge common dummy
    Full bridge
    Full bridge high resolution Full bridge constant current 350 Ω
    Full bridge constant current high resolution 350 Ω
    Full bridge 0-2V mode
    Temperature-integrated strain gauge 120/240/350 Ω
    1-gauge 4-wire 120/240/350 Ω
    Temperature Thermocouple T, K, J, B, S, R, E, N
    Pt-RTD Pt100 3W
    Voltage 640 mV, 64 V
    Recording Internal memory, SD card, USB memory
    Interface LAN, USB, RS-232C
    External dimensions 200(W) × 30(H) × 150(D) mm
    Weight Approx. 1 kg
    Power supply AC adaptor (CR-1867) AC 100~240 V 50/60 Hz 152 VA max.
    Built-in battery Built-in battery Lithium-ion battery
    Continuous operating time Approx. 1 hour (Temperature: 23°C±5°C, When IHW-50G is connected)

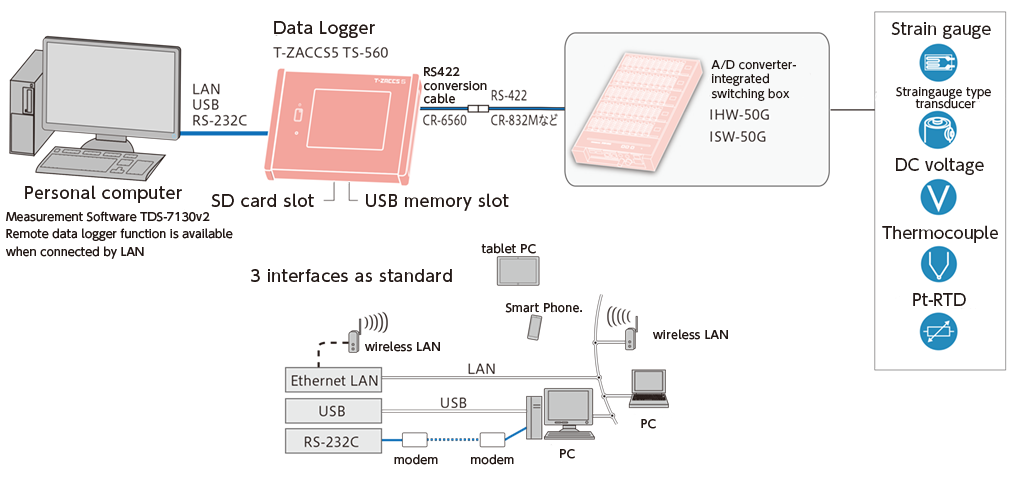

    system

Data Logger TDS-540CE

Measurement of strain, strain gauge type transducer, DC voltage and temperatureThis data logger is an all-in-one-type static strainmeter. This single strainmeter allows measurement using strain gauge, strain gauge-type transducer, DC voltage, thermocouple, and Pt-RTD.

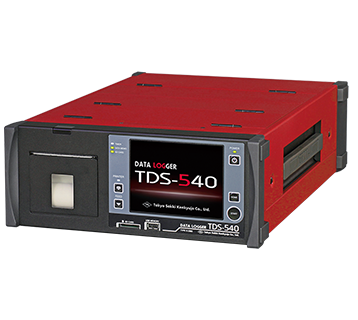

Data Logger TDS-540
Features
  • Onboard color LCD with touch panel offers excellent intuitive operability in either English or Japanese
  • Equipped with three interfaces of LAN, USB and RS-232C
  • SD card and USB memory are usable for data storing in addition to internal data memory
  • Remote data logger function provided card
  • Specifications

    Type TDS-540
    Number of channels 1000 points (using external switching boxes)
    (2000 points at maximum when temperature-integrated strain gauges are used)
    Measuring object Strain, DC voltage, Thermocouple, Pt RTD
    Scanning time

    IHW-50G: 0.4 s/1000 points (1 s/point)
    ISW-50G: 2 s/1000 points (3 s/1000 points)
    ISW-50C: 3 s/1000 points (5 s/1000 points)
    ASW/SSW: 0.08 s/1000 points (80 s/1000 points)
    Built-in switching box: 0.04 s/point, 0.08 s/point
    TML-NET: 200 s/1000 points (0.20 s/point)

    Dimensions 320(W) x 130(H) x 440(D) mm
    Weight Approx. 8 kg
    Power supply AC100-240 V 50/60 Hz 152 VA MAX

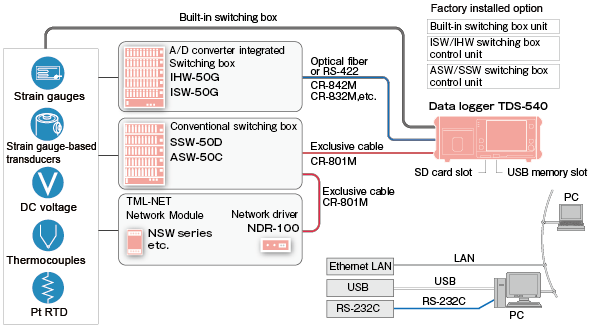

System Block Diagram

img_tds540system-01_1e

Option

  • Built-in switching box unit (with terminal board and connecctor receptacle)
    Available up to 30 channels by every 10 channels
  • Built-in switching box unit: H (High speed type with terminal board and connecctor receptacle)
    Available up to 30 channels by every 10 channels
  • Built-in 1-gauge 4-wire unit: HF (High speed type with 1-gauge 4-wire strain measurement method)
    This is a modular jack unit for 1-gauge 4-wire connection added to the built-in high speed type switching box unit
  • ISW/IHW switching box control unit
    For connection of ISW/IHW switching boxes
  • ASW/SSW switching box control unit
    For connection of ASW/SSW switching boxes

Portable Data Logger TDS-150CE

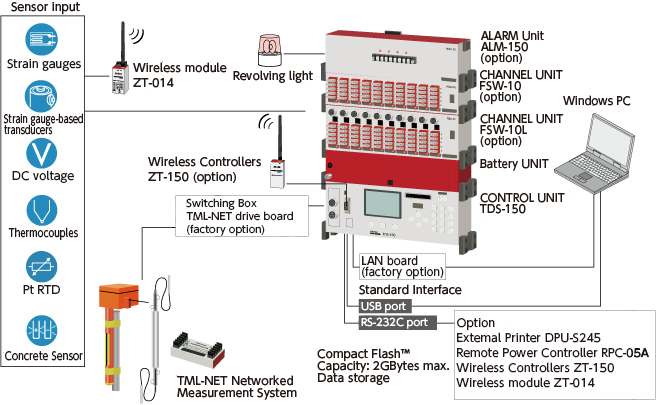

This portable data logger TDS-150 consists of a control unit (TDS-150) and exclusive dedicate channel units (FSW-10) and measures strain gauges, strain gauge type transducers, DC voltages, thermocouples and PtRTD. The dedicate channel unit (FSW-10/FSW-10L) can be cascaded up to 5 units to total 50 channels. In addition, by using a switching box/TML-NET driving board (option), it can be extended up to 100 channels. The TDS-150 operates on not only AC mains but alkaline D-cells or external battery and has data memory and sleep interval timer functions for long term automatic measurement. It is possible to store measurement data and setup conditions on compact flash memory card. Interfaces are USB and RS-232C, and reading of various setting conditions and measurement data can be conducted from a PC.

Portable Data Logger TDS-150
Features
  • Connectable five dedicate channel units (FSW-10/FSW-10L) for 50 channels max.
  • A switching box TML-NET drive board (optional) allows connection of up to 100 channels of TML-NET network modules.
  • Wireless measurement possible using a ZT-150 wireless controller and ZT-014 wireless module (optional).
  • Possible long-term automatic measurement using sleep interval timer.
  • Standard USB and RS-232C interfaces, optional LAN capability
  • Low power consumption
  • Measurement of strain, DC voltage and temperature using thermocouple and Pt RTD.
  • Large capacity data memory available.
  • 1-gauge 4-wire method available.
  • TEDS compatible
  • Complete correction method for strain
  • Specifications

    Type TDS-150
    Number of channels Maximum 100 channels : In conjunction with external switching boxes
    NB: Switching box/TML-NET driving board (Factory-installed option) is required.
    Measuring object Strain, DC voltage, thermocouple, Pt RTD
    Measuring speed 0.08 sec/channel
    Dimensions TDS-150 : 280(W) x 60(H) x 162(D) mm (excluding projecting parts)
    FSW-10 : 280(W) x 60(H) x 100(D) mm (excluding projecting parts)
    FSW-10L : 280(W) x 60(H) x 60(D) mm (excluding projecting parts)
    Weight TDS-150 : Approx. 1.0 kg
    Battery unit : Approx. 0.6 kg (No battery installed)
    FSW-10 : Approx. 1.5 kg
    FSW-10L : Approx. 1.0 kg
    Power requirement LR20 Alkaline cell 4 pieces
    Exclusive AC adaptor (CR-1867) (Option)

System Block Diagram

img_tds150system-01_1e

Handheld Data Logger TC-32K

The TC-32K is a compact and handheld digital data logger. Its splash-waterproof construction enables outdoor use. The sensor connection terminal board is a patented one-touch type to facilitate connection with leadwires and banana plug and speedy preparation for measurement. Sensor mode, coefficient and initial values can be set and measurement values recorded for the maximum 20 channels, so you can collect measurement data at several field sites for later data processing. The use of the exclusive switching box CSW-5B makes 5-channel automatic measurement possible. The TC-32K has an interval timer, data memory, compact flash memory card slot and interfaces for computer control and data transfer. Gauge resistance and insulation resistance measurement functions are also provided to easily check strain gauges and transducers.

Handheld Data Logger TC-32K
Features
  • High brightness LCD and Easy operation with menu in Japanese or English
  • Standard interface USB and RS-232C provided
  • Measurement data and setup conditons can be stored on compact flash card.
  • Measures strain, DC voltage, thermocouple, PtRTD
  • Insulation resistance measurement function is provided to check sensors.
  • 1-Gauge 4-Wire strain measurement compatible
  • New compensation methods of measuring strain provided
  • TEDS compatible
  • One touch connection of sensor cable
  • Possible automatic measurement using sleep interval timer
  • Low power consumption, Alkaline battery (LR6 x 4) drive supported, Easy battery exchange on site
  • Multiple measurement available with exclusive switching box CSW-5B
  • Possible combination of 2 directional inclinometer adaptor IA-33 and IA-32
  • Specifications

    Type TC-32K
    Number of channels 1 channel : TC-32K only
    5 channels : Combined with CSW-5B, CSW-50B-05
    Measuring object Strain, DC voltage, Thermocouple, PtRTD
    Measuring speed 0.08 sec/channel TC-32K only
    0.08 sec/channel Combined with CSW-5B
    Dimension 102(W) x 49(H) x 223(D) mm  (except projecting parts)
    Weight Approx. 800 g
    Power supply 4 AA-size (LR6) alkaline batteries
    or 4 AA-size Ni-Cd rechargeable batteries (KR-AA)
    or exclusive AC adaptor DC9 - 18V (Option)

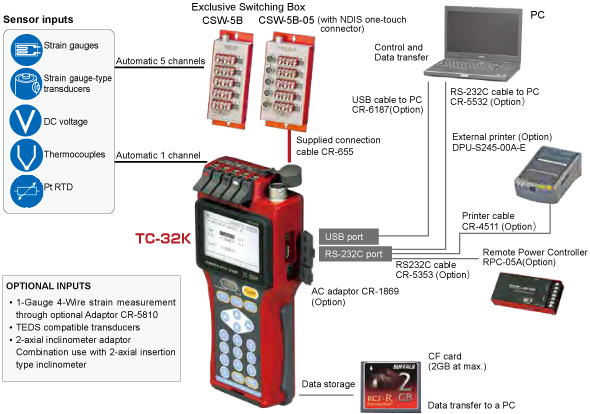

System Block Diagram

img_tc32ksystem-01_0e

T-ZACCS3 Pocket Data Logger for Strain Measurement MM-014

Small and light-weight instrument for simple and accurate strain measurement

The MM-014 is a small and light-weight instrument that enables strain measurement by easy operation. Our unique measurement method is employed for highly accurate and stable measurement. Owing to the adoption of reflective color LCD, excellent visibility and long-time operation with low power consumption are realized. Stable automatic measurement is possible for a long time by the built-in sleep function with high accuracy and low power consumption. Intuitive operation is performed using the function keys which are linked with icons in the screen. With the connection of a sensor, its measured value is confirmed in real time. The measured values are stored in a SD card for easy and smooth data acquisition.

MM-014
Features
  • Owing to our unique measurement method, power line noise is eliminated and stable measurement is realized
  • Reflective color LCD that is clearly visible even outdoors under a bright sky (display in Japanese or English switchable)
  • Long-time operation by battery (continuous operation for 8 hours)
  • Automatic measurement function provided (measurement of 2800 times possible at intervals of 1 hour using sleep function)
  • Batch setting of coefficient, unit, decimal point and sensor type using “Sensor ID”
  • Accepts TEDS (Transducer Electronic Data Sheet) sensor
  • Data are securely held by recording them into the built-in data memory
  • Easy data collection using SD card
  • Specifications

    Type MM-014
    Number of measuring point 1 point
    Bridge excitation DC1V
    Applicable transducer Strain gauge type transducer (full bridge)
    Applicable gauge resistance 120 ~ 1000 Ω
    Measuring range ±30,000×10-6strain
    Resolution 1×10-6strain
    Initial value memory range ±16,000×10-6strain
    Input Terminal block / Connector (EPRC07)
    Measurement mode Initial, Direct, Measure
    Program setting Coefficient, Unit, Decimal point, Offset
    Coefficient setting Sensor ID, TEDS, Coefficient input
    Interval timer Measurement at set intervals
    Display 2.7 inch TFT color liquid crystal display
    Resolution 400 × 240 dot
    Operation Function key 1/2/3, UP/DOWN key, ENTRY key, POWER key
    Internal memory Function Measured data recording, Setting file recording/reading
    Capacity 10000 data at maximum
    Recording method Interval timer, ENTRY key (manual)
    SD card Function Measured data recording, Setting file recording/reading
    Physical format FAT16/32
    Recording format CSV format
    Capacity 512 Mbyte (specified by our company)
    Interface Conforms to RS-232C (various settings, measurement, data acquisition)
    Built-in battery Lithium-ion battery (1900 mAh)
    Continuous operating time Approx. 8 hours (Condition Temperature: 23°C±5°C Measurement: Monitoring (350Ω bridge) )
    Charging time Approx. 3 hours (at standby status)
    External power supply Exclusive USB AC adaptor (Type C) AC 100 ~ 240 V 50/60 Hz
    Operating environment 0 ~ +50°C 85%RH or less (no condensation)
    Charging environment 0 ~ +40°C 85%RH or less (no condensation)
    External dimensions 136(W) × 32(H) × 71(D) mm
    Weight Approx. 300g
  • External Dimensions


    MM-014外観寸法図
