Dynamic Strainmeters Digital type

Multi-channel Dynamic Strainmeter DS-50A

Cable-connecting up to 20 units, 50 channels per unit, allows simultaneous sampling measurement of up to 1000 channels. Capable of measuring 100-Hz occurrences at a fastest sampling of 1 kHz. Allows cable connection between devices of as much as 100 m, for wide-area, multi-channel dynamic strain measurement not possible with conventional dynamic strain measuring instruments.

Multi-channel Dynamic Strainmeter DS-50A
Features
  • Simultaneous measurement of 20 sets (1,000 channels) is available at the maximum.
  • 1 kHz sampling at the fastest when 1 set is used.
  • Accommodates mixed strain and voltage units
  • Comes standard with measurement software
  • Specifications

    Type DS-50A
    Number of channels 50 channels
    Strain unit, voltage unit and thermocouple unit can be mixed.
    10 channels / 1 unit
    Synchronization Maximum 20 sets (1,000 points)
    Sampling speed 1 to 10,000 ms *1
    Interface LAN (100 BASE-TX)
    External dimensions 420(W) x 110(H) x 298(D) mm (excluding projected parts)
    Weight Approx. 5 kg

    *1 : The sampling speed is added 1 ms with connecting each one set.



    Strain unit
    Number of channels 10 channels
    Gauge resistance Quarter bridge 3-wire system 120 Ω, 350 Ω
    Half bridge system 120 to 1,000 Ω
    Full bridge system 120 to 1,000 Ω
    Bridge excitation DC 2 V
    Measuring accuracy ±0.05 %FS(at 23±5℃)
    Measuring range ±25000 x 10-6 strain
    Frequency response DC to 100 Hz
    Voltage unit
    Number of channels 10 channels
    Measuring range ±20 V
    Frequency response DC to 100 Hz
    Thermocouple unit
    Number of channels 10 channels
    Measuring range T : -250 to +400 ℃
    K : -210 to +1370 ℃
    J : -200 to +1200 ℃
    Frequency response DC to 10 Hz

Smart Dynamic Strain Recorder DC-204R / DC-204RaCE

200-kHz high-speed sampling possible in 1-channel mode — connect 8 units at the same time for simultaneous sampling of up to 32 channels.
The DC-204Ra has analog output (±5 V) function for external recorder or automotive ECU.START/STOP button on front allows start of measurement by trigger setting, external trigger, control by external start/stop signal, etc.

Smart Dynamic Strain Recorder DC-204R / DC-204Ra
Features
  • 4-channel configuration with miniature size like postcard
  • 200 kHz sampling (at the fastest in 1-channel mode)
  • Simultaneous 50 kHz sampling for 4 channels
  • Capable of measuring a large strain of up to 80000 x 10-6 strain (with 0.5 V excitation)
  • Data recording in compact flash card of 2 Gbyte capacity
  • Automatic data protection against power failure. When the power is droped unexpectedly, stops measurement and stores data before turning off the power.
  • Data format conforms to DADiSP format
  • External start / stop and external trigger
  • Sensor open-circuit check function
  • USB Interface installed and standard control software supplied
  • Specifications

    Type DC-204R / DC-204Ra
    Measuring object Strain
    DC voltage (with optional CR-4010, CR-4020)
    Thermocouple (with optional TA-01KT)
    Number of channels 4 channels
    Measuring range ±20000 x 10-6 strain (at 2 V excitation)
    ±80000 x 10-6 strain (at 0.5 V excitation)
    Frequency response DC to 10 kHz (-3 dB±1 dB)
    Gauge resistance 120 to 1000 Ω (full bridge)
    Maximum sampling speed 5 μsec (1 ch), 10 μsec (2 ch), 20 μsec (4 ch)
    Analog output
    (DC-204Ra only)
    Voltage output:  ±5 V (5 kΩ load)  ±1 mA
    Output accuracy:  ±0.3 %FS
    Calibration output: ±1 V (added to the input value)
    External dimensions 84(W) x 42(H) x 157(D) mm
    Weight Approx. 500 g
    Power supply DC 10 to 16 V 0.4 A MAX.

PC control Dynamic Strainmeter DC-004P

The DC-004P is a PC control type dynamic strainmeter. It stores measured data in a PC which is connected via USB interface, without having a recording medium in the strainmeter. Since a continuous recording is possible, this strainmeter is most suited to measurement such as material testing.

PC control Dynamic Strainmeter DC-004P
Features
  • Manual trigger, data trigger and Interval trigger can be executed at the same time
  • 50 kHz sampling (at the fastest in 1-channel mode)
  • Simultaneous sampling of 12.5 kHz for 4 channels (4-channel type)
  • Capable of measuring a large strain of up to 80000×10-6 strain (with 0.5 V excitation)
  • Direct recording on a PC
  • Supporting long term measurement
  • 4-channel type and 2-channel type are supportable
  • Measured data conforms to DADiSP format
  • TEDS compatible
  • Control software (DC-7004P) supplied as a standard accessory
  • Specifications

    Type DC-004P
    Measuring object Strain
    DC voltage (with optional CR-4110, CR-4120)
    Thermocouple (with optional TA-01KT)
    Number of channels 4 channels (4-channel type), 2 channels (2-channel type)
    Measuring range ±20,000 x 10-6 strain (at 2 V excitation)
    ±80,000 x 10-6 strain (at 0.5V excitation)
    Frequency response DC to 2 kHz
    Applicable gauge resistance 120 Ω, 350 Ω (Full bridge)
    Maximum sampling speed 20μsec. (1-channel mode), 40μsec. (2-channel mode), 80μsec. (4-chaanel mode)
    External dimensions 120(W) x 50(H) x 180(D) (except projecting parts)
    Weight DC-004P : 4 channels type Approx. 600g
    DC-004P (-2) : 2 channels type Approx. 500g
    Power supply DC 10 to 16 V 0.3 A Max. (when supplied from DC jack)
    *Can be supplied from USB buspower

Handheld Dynamic Strainmeter DH-14A

The DH-14A is a handheld and battery-operated dynamic strainmeter having 4 measurement channels. Dynamic strain is easily measured while monitoring numerical values and wave forms. Trigger measurement mode and free-run measurement mode are available. The DH-14A is well suited not only for measurement in fieldwork or on moving object, but also for checking sensors and input noise as a checker. Using 4 AA alkaline batteries commercially available, the meter allows measurement for 4 consecutive hours (or for 6 hours in power saving mode).

Handheld Dynamic Strainmeter DH-14A
Features
  • Simultaneous sampling of 4 channels

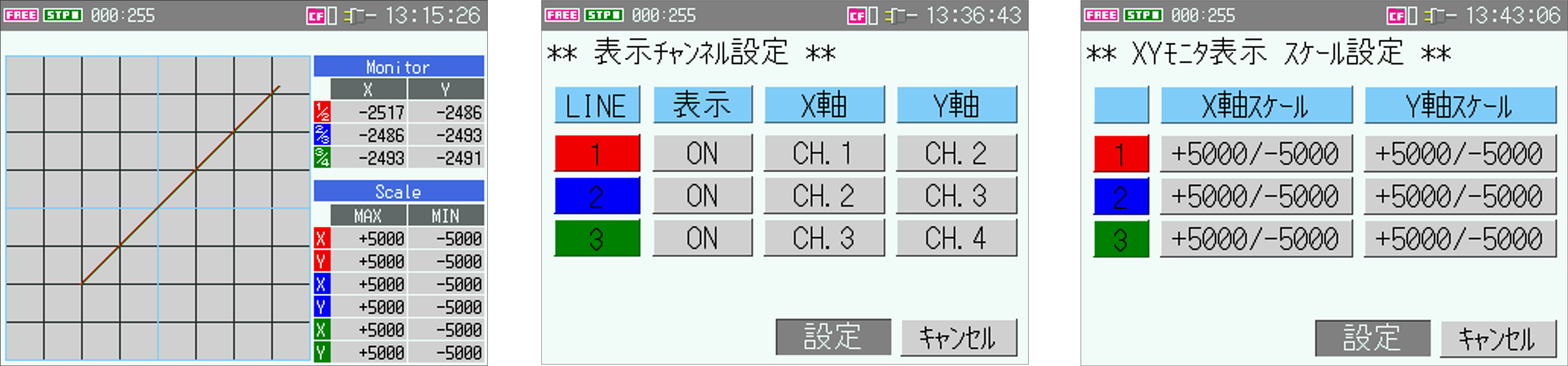

  • Measured data indicated by waveform
  • ECO mode (power saving mode) equipped
  • Powered by 4 AA alkaline batteries
  • Measured data conforms to DADiSP format
  • TEDS compatible
  • Specifications

    Type DH-14A
    Measuring object Strain
    DC voltage (with optional CR-4110, CR-4120)
    Thermocouple (with optional TA-01KT)
    Number of channels 4 channels
    Measuring range ±20,000 x 10-6 strain (at 2 V excitation)
    ±80,000 x 10-6 strain (at 0.5 V excitation)
    Frequency response DC to 1 kHz (-3dB±1dB)
    Applicable gauge resistance 120 Ω, 350 Ω (Full bridge)
    Maximum sampling speed 50μsec (1-channel mode), 100μs (2-channel mode), 200μs (4-channel mode)
    External dimensions 150(W) x 63(H) x 150(D) mm (except projecting parts)
    Weight Approx. 1 kg
    Power supply 4 AA-size (LR6) alkaline batteries
    AC adaptor (optional)
