Network Handheld Strainmeter

Network Handheld Strainmeter TC-35N

The TC-35N is a handheld instrument which captures and processes the digitized strain data from network modules. It can be used for checking the system on site and/or constructing a small measurement system. By adopting low-consumption type network modules, number of connectable modules and extending distance of modules are enlarged drastically and construction of a comparatively larger measurement system is easily enabled.

Network Handheld Strainmeter TC-35N
Features
  • Small, light and easy to carry
  • 4 pieces of AA(LR6) battery operation - Easy battery exchange on site
  • Drip proof construction
  • Built-in deta memory
  • Compact Flash Card can be used
  • Built-in interval timer
  • Control and data transmission by RS-232C interface
  • Automatic measurement with sleep interval function
  • Use of external DC power supply available
  • Specifications

    Type TC-35N
    Maximum number of connection Conventional module 5 modules (when using internal AA batteries or AC adaptor)
    100 modules (when using external DC power source; 200m or less for 2-wire conection)
    Low-comsumption module 50 modules (when using internal AA batteries or AC adaptor)
    100 modules *1 (when using external DC power source; 2km or less for 2-wire connection)
    Maximum extension distance Conventional module 50m (when using internal AA batteries or AC adaptor)
    2km (when using external DC power source; 15 modules or less for 2-wire connection)
    Low-comsumption module 50m (when using internal AA batteries or AC adaptor)
    2km (when using external DC power source; 100 modules or less for 2-wire connection)
    Applicable transducer Conforms to network module
    Data acquisition speed Approx. 0.2sec/ch in scanning measurement
    Function

    Scanning measurement, Monitoring measurement, Module checking function, ID checking function, Reading transducer information (CAP, RO),
    Setting channel of network module

    Dimensions 102(W) x 55(H) x 223(D)mm
    Weight  Approx. 850g
    Power source Alkaline dry battery LR6×4 or Dedicated AC adaptor

    *1: When 2-channel modules (NSW-024C and NKB-MD) are used, the maximum number of channel is 100.
    Note: When conventional module and low-comsumption module are used together, the specifications follow those for conventional module.

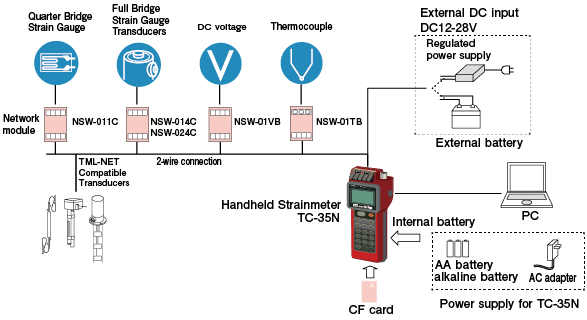

System Block Diagram

tc35nsystem
