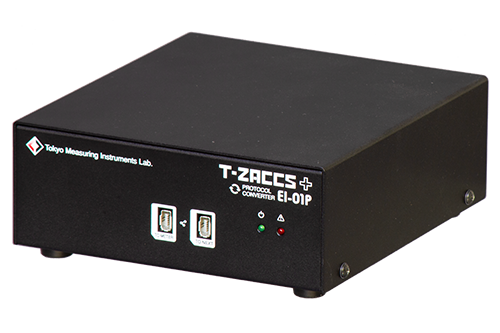

Switching Box Protocol Converter T-ZACCS + EI-01P

Switching box protocol converter for T-ZACCS9 TS-963/-960. The ISW-50G/IHW-50G switching boxes can be connected to the T-ZACCS9 TS-963/-960 for operation. One switching box can be operated with one unit of this converter.

  • T-ZACCS9 TS-963/-960 enables measurement of switching box ISW-50G/IHW-50G
  • Easy handling with no special settings required
  • Corresponding to 1-gauge 4-wire measuring method
  • Specifications

    Type EI-01P
    Function Connection with switching box ISW-50G/IHW-50G
    *Measurement speed and sensor mode depend on switching box
    Connection with data logger
    Number of connectable units Up to 20 units (in total including EX-50H)
    Extension distance 100m (between devices)
    Connection cable Connection cable for EX (CR-89**)
    Connection with switching box
    Target model IHW-50G, ISW-50G
    ELECTRICAL (RS-422) Number of connectable units 1 unit, 50 points
    Extension distance 2m
    Connection cable Extension cable for ISW/IHW(CR-832M)
    External dimensions 160(W)×60(H)×171.5(D)mm
    Weight Approx. 1 kg
    Power supply AC100 to 240V 50/60Hz 12VA MAX
