Tie Bar Force Checker
Tie Bar Force Checker
Axial Force Measurement System for Injection
Molding Machine Tie Bars and Tie Rods
Enables inspection, verification, and data visualization for injection molding machines.
Also ideal for alignment measurement.
Measure clamping force easily and accurately.
Key Features
-
Magnetic mounting enables quick installation, reducing inspection time.
-
Easy to install, even for first-time users.
-
Compatible with a wide range of diameters (Ø50 to Ø150 mm)
-
Battery-powered operation eliminates the need for an external power supply.
-
Can be used interchangeably on multiple machines and systems.
-
Supports data logging.
-
Replaceable sensor design helps reduce maintenance costs.
-
Strain gauge technology enables highly accurate measurements.
-
Manufactured in Japan, allowing prompt support for repairs and calibration services.
-
Supplied with a carrying case for easy transport.

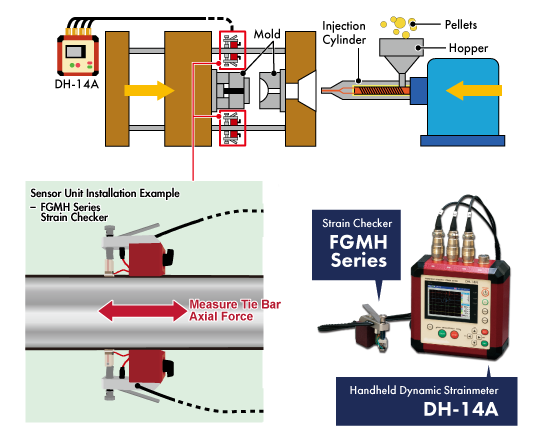

Installation Example (Injection Molding Machine)

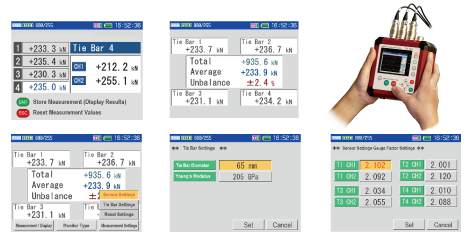

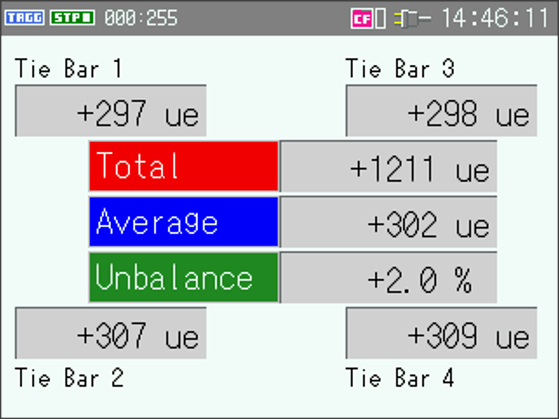

Instrument Display Example
*Axial force measurement is available by entering the required parameters
  |
 |
|
|
|

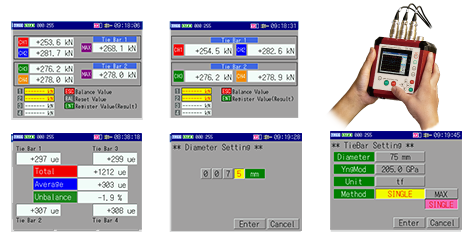

■ Two Measurement Modes Dedicated to Tie Bar Measurement
| • | Measurement Mode: "MAX" |
| Registers the highest value among the averaged measurement values as the measurement result. | |
| • | Measurement Mode: "SINGLE" |
| Registers the most recent averaged measurement value as the measurement result. |
